Arrays & Multidimensional Arrays

Marginally Indexed Arrays

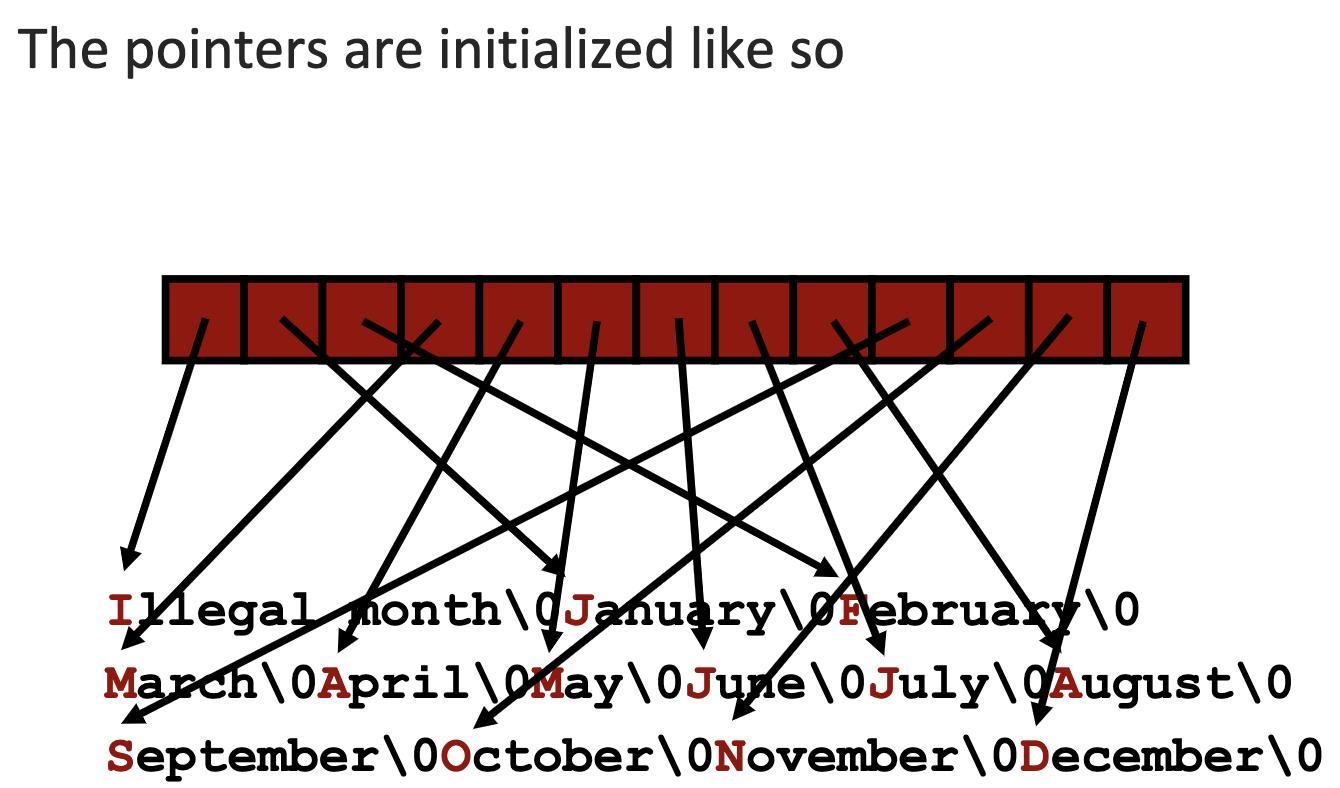

char *month_name(int n) {
	static char *name[] = {
		"Illegal month",
		"January", "February", "March",
		"April", "May", "June",
		"July", "August", "September",
		"Octoober", "November", "December"
	}
	return (n < 1 || n > 12) ? name[0] : name[n];
}

name is stored in a static area memory since static keyword is used. Th

Multi-Dimensional Array

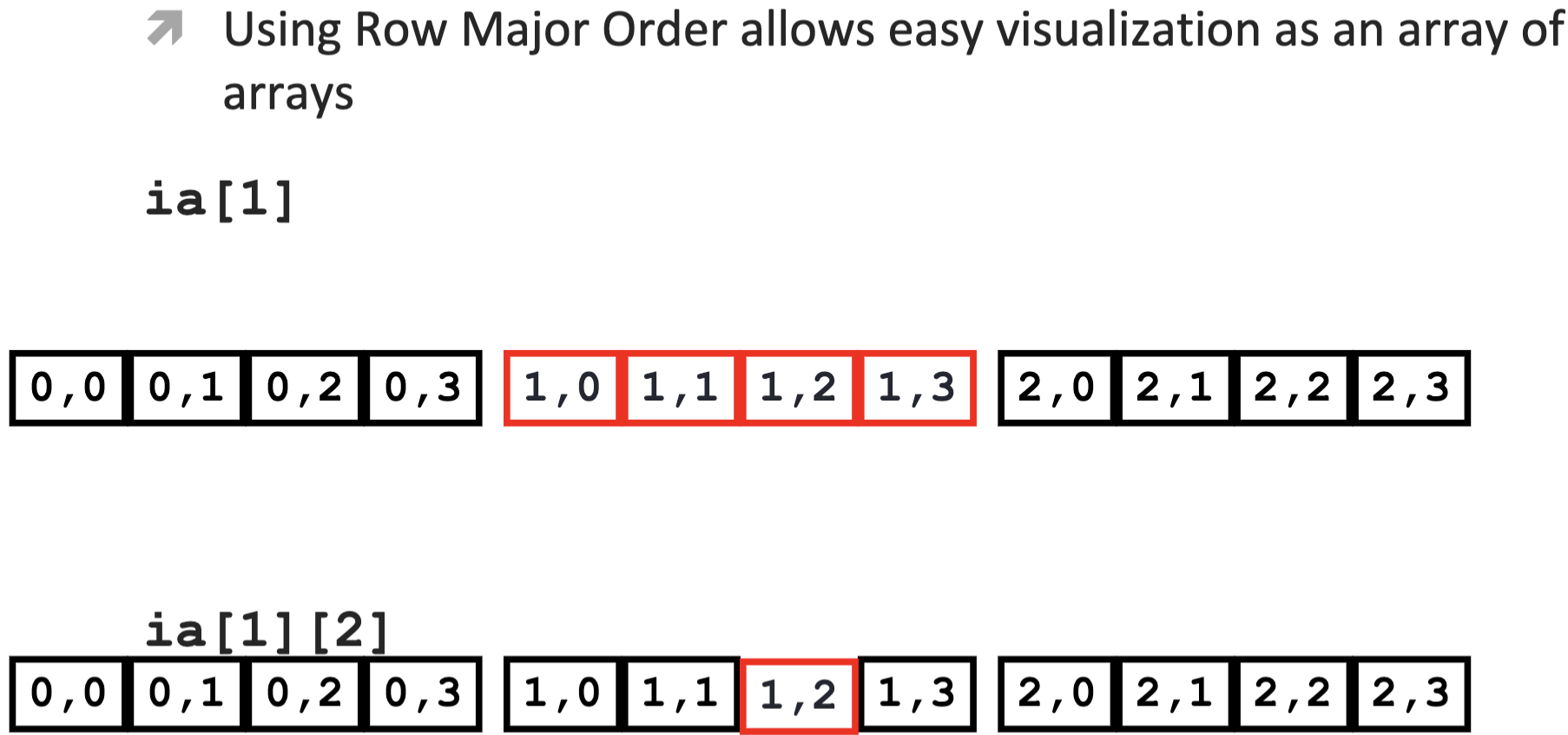

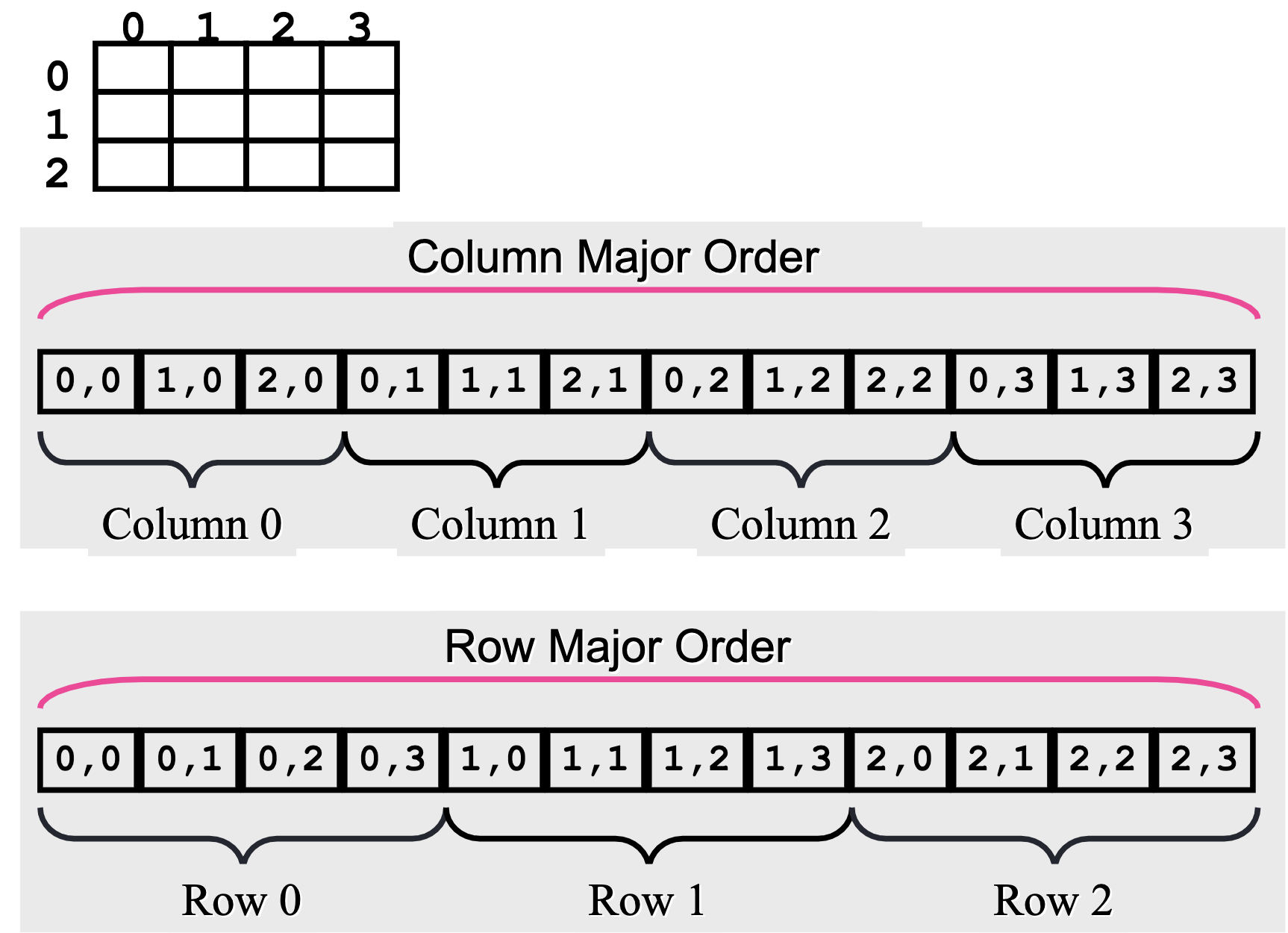

• Visualization of Indexing into an Array



#include <stdio.h>
#include <stdlib.h>
int main() {
	int a[5][7];
	printf("sizeof a = %d\n", sizeof a); //140
	printf("sizeof a[3] = %d\n", sizeof a[3]); //28
	printf("sizeof a[3][4] = %d\n", sizeof a[3][4]); //4
	return EXIT_SUCCESS;
}
//The type of a[3][4] is int(int size is 4)
//The type of a[3] is array[7] of int
//The type of a is array[5] of array[7] of int

• One Dimensional Array

  //One dimensional array
  int ia[6];
  //Address of the beginning of array:
  ia = &ia[0];

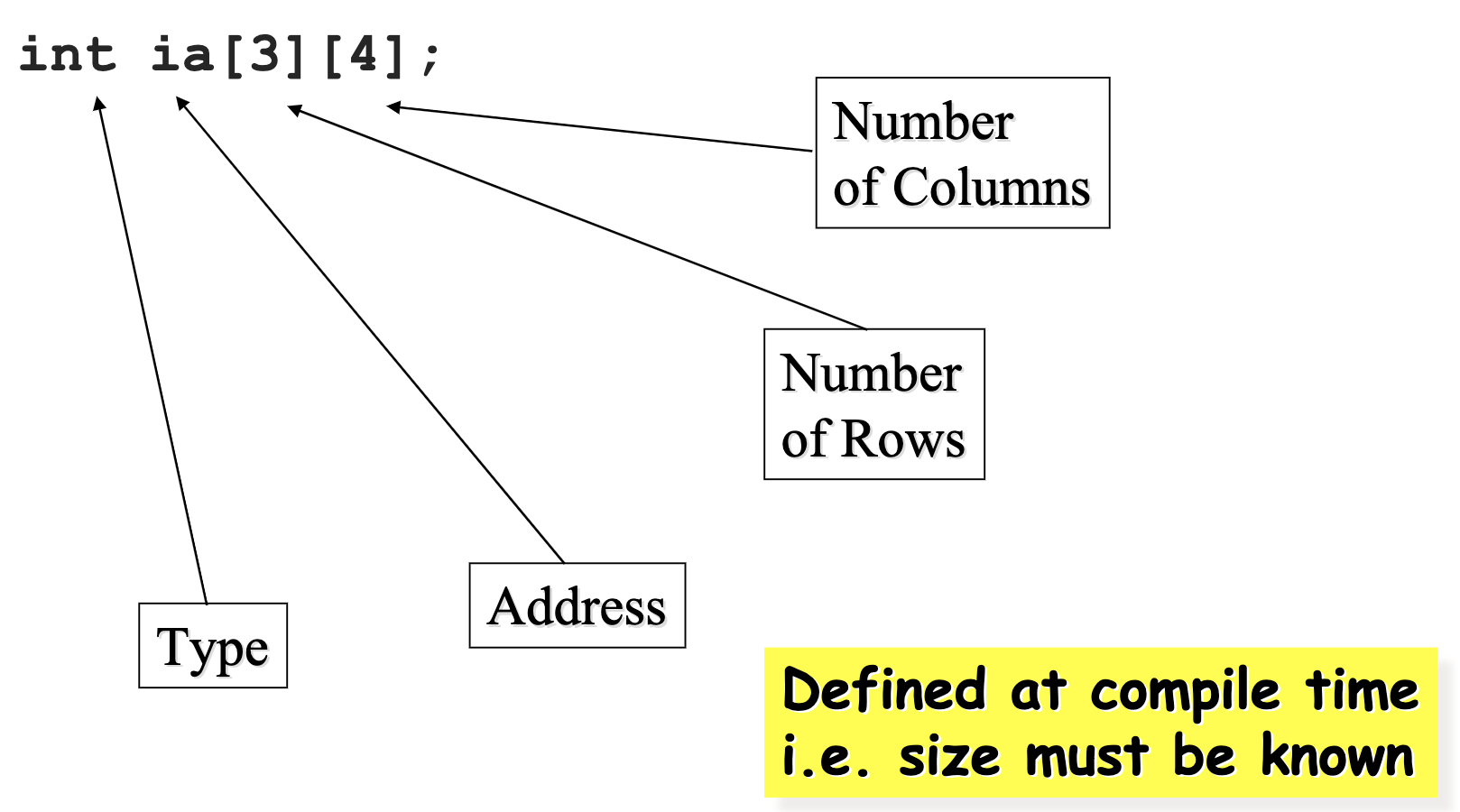

• Two Dimensional Array

  //Two Dimensional Array
  int ia[3][6];
  //Address of th beginning of array:
  ia = &ia[0][0];
  //Address of row 0
  ia[0] = &ia[0][0];
  //Address of row 1:
  ia[1] = &ia[1][0];
  //Address of row 2:
  ia[2] = &ia[2][0];

Element Access

1. skip over required number of rows:

   row_index * sizeof(row)

2. plus the address of array gives the address of first element of desired row

   column_index * sizeof(arr_type)

Pointer Calculations on our own

Compute array memory address: Cast the pointer to (char *)

The multiplier applied to arithmetic on that pointer will then be sizeof(char) == 1

To access element (r, c) in arr:

int arr[5][10];
int offset = (r * 10 + c) * sizeof(int);
int *p = (int *)((char *) arr + offset);
//p points to the address of arr[r][c];
//NOT HOW YOU ACTUALLY WRIT IN C

Multidimensional Array Parameters

Since declaration of 1D arrays don't need to be told the size, we never need the first dimension to declare any array.

See in-class quiz q3 for more explanation

void tester(int arr[][4][5], int len)
{ ... }
int main()
{
		//one-dimensional array delcaration, e.g. double q[]
    int ia[3][4][5];
		//
    int ib[8][4][5];
    int *ic;
	  //ic = ia; // warning: incompatible type
    ic = &ia[0][0][0];[
    tester(ia, 3);(
    tester(ib, 8);(
    tester((int (*)[4][5])ic, 3;
}

3D array

offset = (i * rows * columns) + (j * columns) + k

a[i][j][k] == (*(*(a + i) + j) + k)

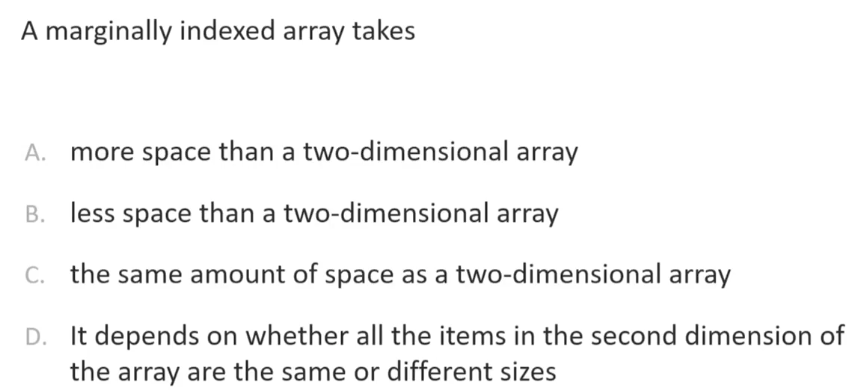

• In-class quiz question 1



  • Answer

    D.

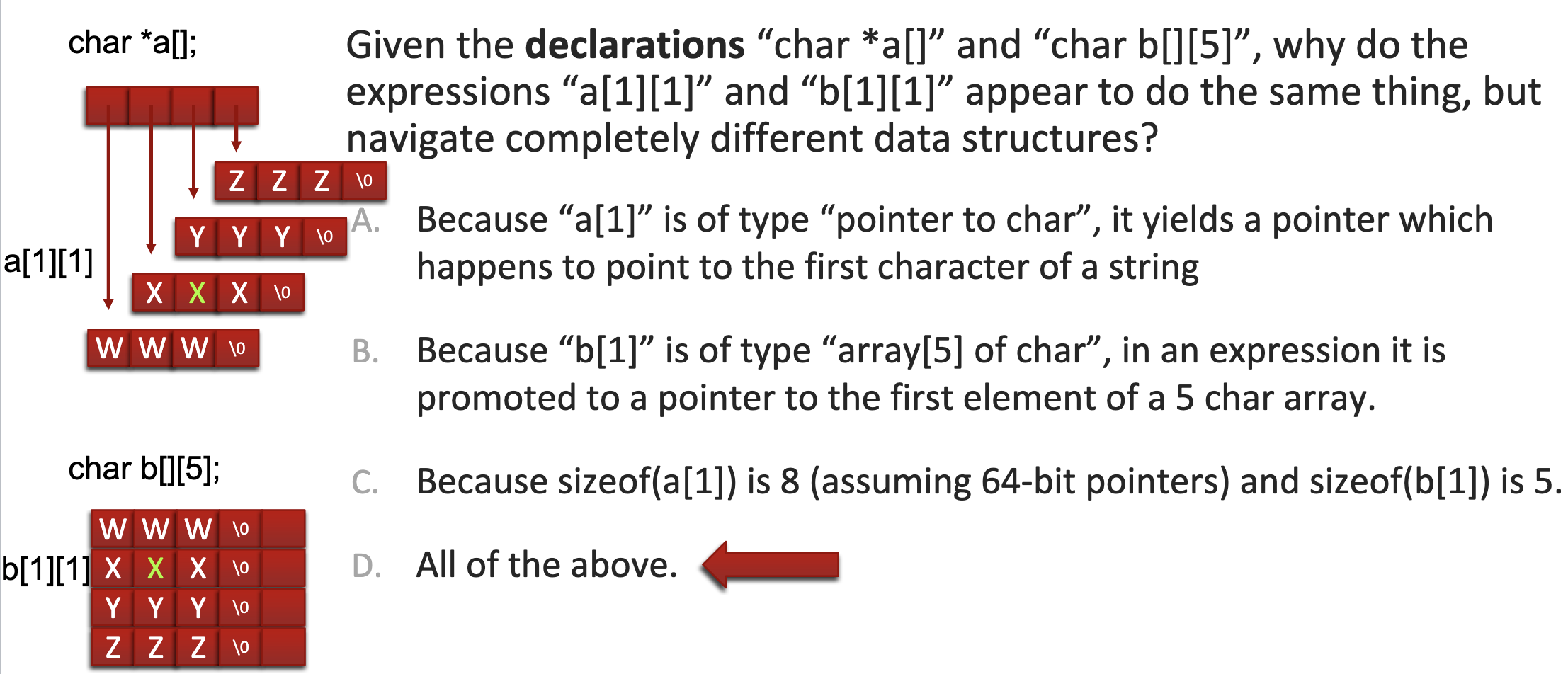

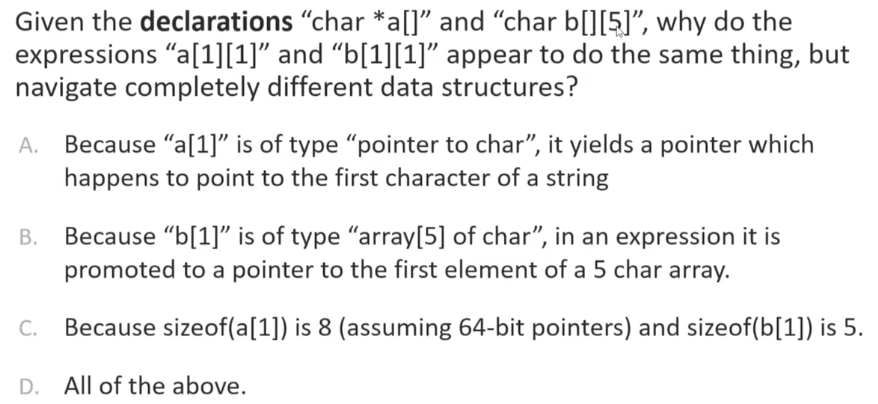

• In-class quiz question 2



  • Answer



    a is a marginally indexed array

    b is a 2-D array

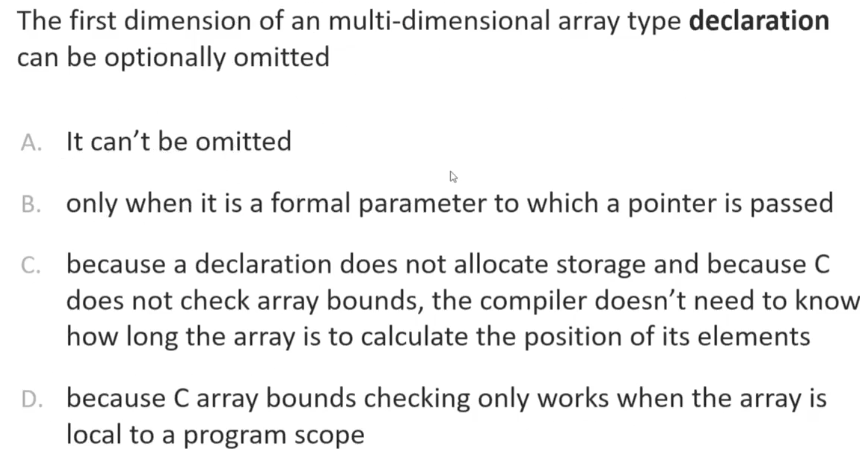

• In-class quiz question 3



  • Answer

    C
