GBA - Game Boy Advance emulator

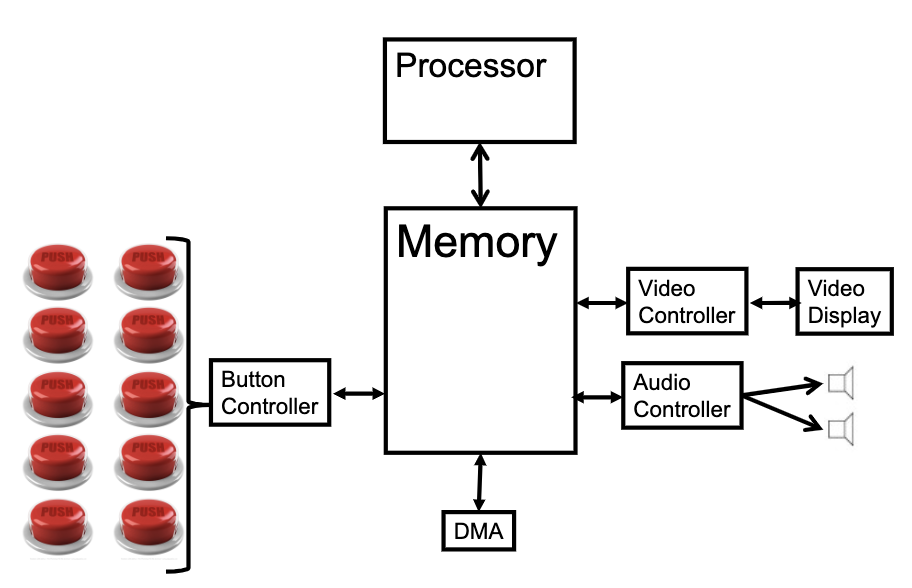

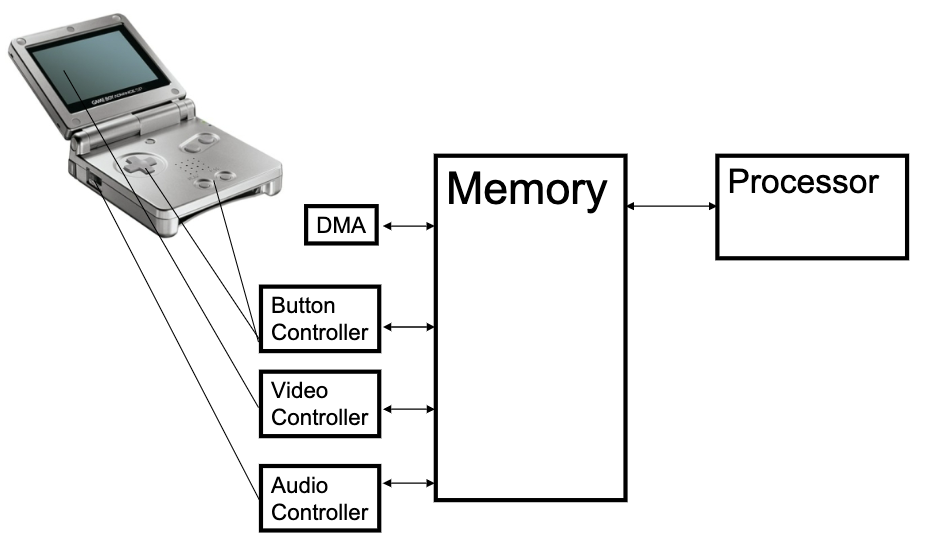

• GBA fundamental diagrams





GBA graphics

Pixel: 16 bit value

Each color is allotted 5 bits, intensity from 0 - 31

Bit 15 is unused

• GBA colors



Video Buffer

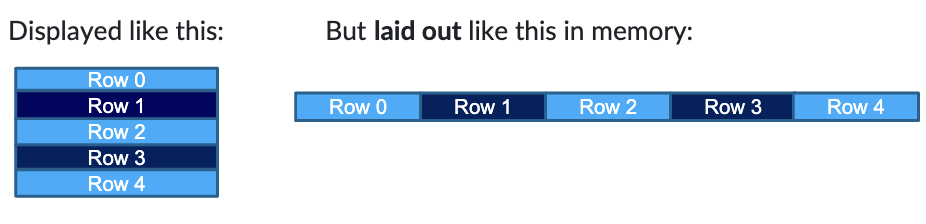

Video buffer is a one dimensional array that tells GBA hardware the value to display on the screen

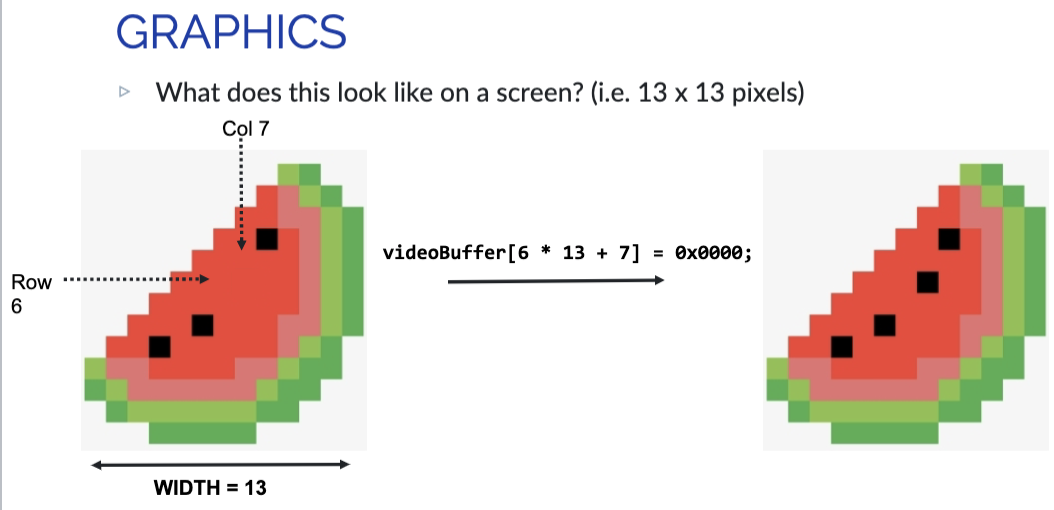

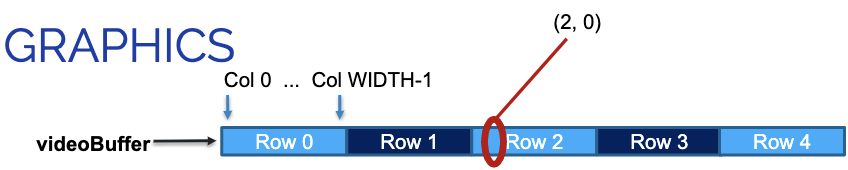

Indexing into a specific (row, col) coordinate

Offset Calculation:

WIDTH is the length of each row(the width of the screen)

Can use Macro to simplify this calculation

• Example

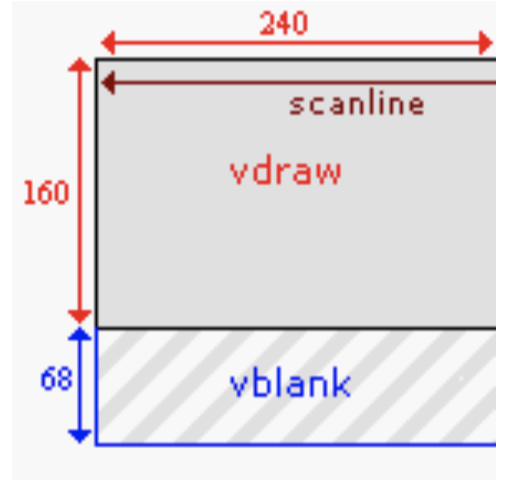

GBA Draw Cycle

GBA alternates between: VDraw and VBlank

VDraw:

VBlank: Nothing Happens

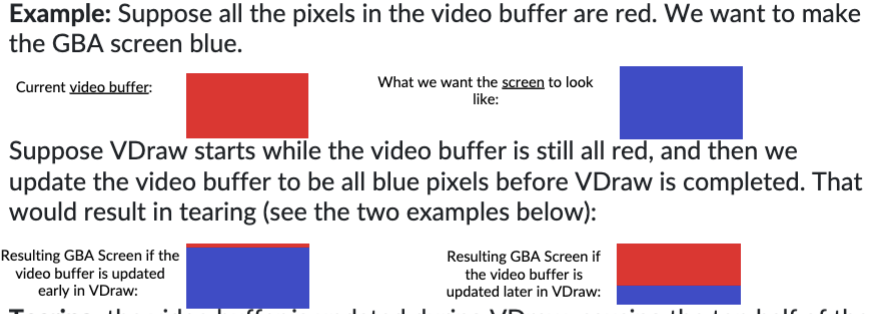

Tearing

the video buffer is updated during VDraw, causing the top half of the screen to show the old image and the bottom half to show the new image.

If we update the video buffer during VBlank, no tearing will happen, because the screen is not updated during VBlank.

• Example



Synchronizing Drawing and Logic

The GBA exposes the scanline counter as a memory- mapped device register; it can be read using the macro defined below.

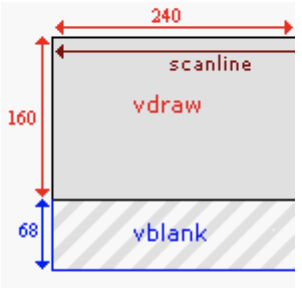

The scanline counter indicates the current row of pixels being drawn at the screen (screen height: 160)

• 0 ≤ SCANLINECOUNTER ≤ 159: VDraw

• 160 ≤ SCANLINECOUNTER ≤ 227: VBlank

#define SCANLINECOUNTER *(volatile unsigned short *)0x4000006

Implementing waitForVBlank

SCANLINECOUNTER > 160 —> thee GBA is in VBlank

Two issues:

• What if scanline is past 160, but almost at the end of VBlank? No enough time to change the video buffer before VDraw

• What if app logic runs too quickly and we draw two frames during the same VBlank?

Use waitForVBlank()

• wait for the next full VBlank period

• SCANLINECOUNTEER == 160 exactly

• Wait until scanline is past VBlank and then comes back to VBlank

However, VBlank cannot fully eliminate tearing — Only about 1600 pixels updates can be drawn during a single VBlank phase. Filling the entire screen (38400 pixels) takes several cycles, guaranteeing tearing.

Direct Memory Access(DMA)

DMA optimizes large array copy, can drawing without tearing(drawing is array copy)

DMA is not connected to the CPU. However, when DMA operates, it takes cycles from the CPU and writes to specific memory locations, then returns control to the CPU once finished.

There are 12 DMA registers and 4 channels. Each channel has a source, destination, and control register.

Channel 3 - General Purpose Register

DMA Source and Destination Registers

Both Source and Destination Registers contain short pointers.

Destination Register:

• Given a pointer to videoBuffer, potentially with some offset added

Source Register:

• Source register is typically given a pointer to an array of pixel values, or a constant color

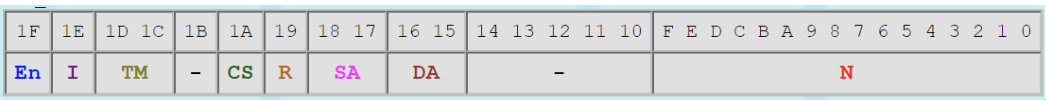

DMA Control Registers

The control register sets:

• Whether DMA is currently enabled(En)

• How many elements to copy over(N)

• How to iterate through the destination(DA)

• How to iterate through the source(SA)

• Whether to copy halfwords(16-bits) or words(32-bits)(CS)

Iteratee through destination/source

• Increment the address with each element(low —> high addresses)

• Decrement the address with each element(high —> low addresses)

• Fix the address with each element

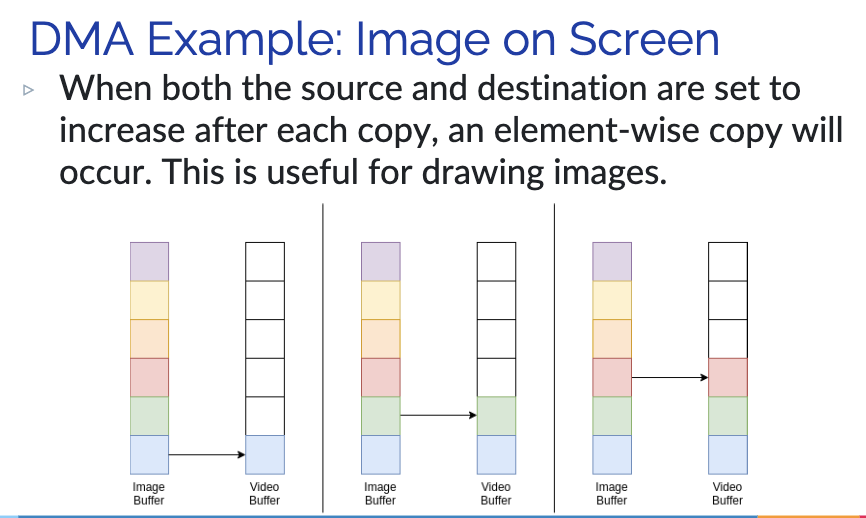

• DMA example: Image to Screen



• DMA example: Color on Screen

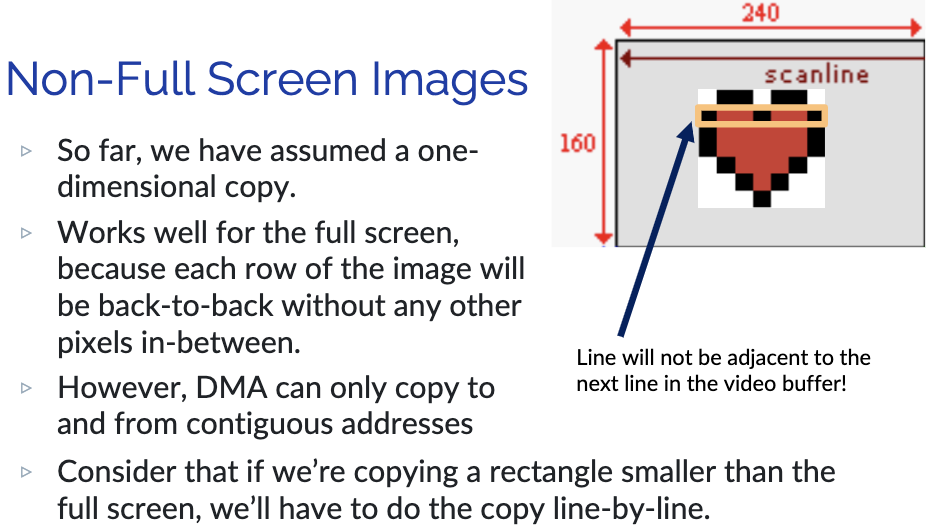

• DMA: Non-full Screen Images



Use DMA in code

DMA_Controller struct with the 3 registers:

typedef struct

{

}

DMA[3] is used to access channel 3

#define DMA ((volatile DMA_CONTROLLER *) 0x040000B0)

GBA Program as a State Machine

• State 1: Start screen
  • Draws an image. Transition to State 2 when "start" is pressed

• State 2: Core application
  • Contains the actual application - draws any necessary icons or images and transitions to State 3 if times expires

• State 3: The "game over" or "exit" screen
  • Draws an image; transitions to State 1 when "start" is pressed

Buttons

In this register, bits 15–10 are unused, and each button is assigned a

single bit.

The key states are low-active, meaning their bit is cleared when the button is pressed and set when it is released.

• Change states on button presses

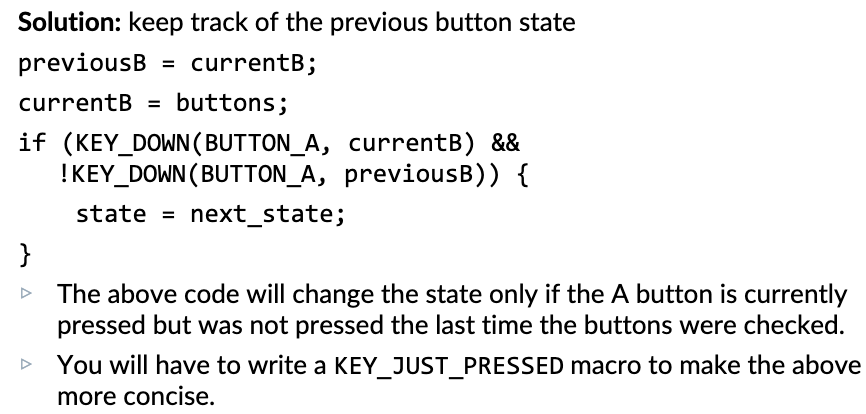

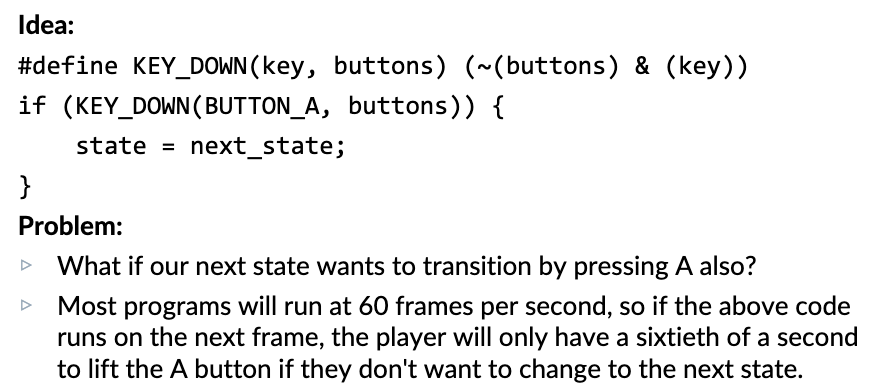

• Edge-Triggered State Changes



Questions & Answers

• What is the draw cycle? What does waitForVBlank do?

• What is the videoBuffer is and how is it represented in C?

• How are colors represented in the videoBuffer?

• How do you index the videoBuffer ?
  • Write a line of code that sets the pixel in row 15 and column 12 (indexed from 0) to yellow

• Understand what the videoBuffer is and how it's represented in C
  • It is a one-dimensional array of pixels used to generate graphics. Each pixel is represented by a 16 bit value.

• Understand how to index the videoBuffer
  • Write a line of code that sets the pixel in row 15 and column 12 (indexed from 0) to black
    • videoBuffer[15*WIDTH + 12] = 0x0000

GBA Basics

• What is the draw cycle? What does waitForVBlank do?
  • Draw Cycle
    • The GBA alternates between two phases: VDraw and VBlank.
    • VDraw : GBA copies one row of pixels at a time from the video

buffer to the screen.

• VDraw is not instantaneous : halfway through VDraw, only half

the scanlines have been drawn.

• VBlank : nothing happens.

• waitForVBlank
  • If we update the video buffer during VBlank, no tearing will happen,

because the screen is not updated during VBlank

• Understand what the videoBuffer is and how it's represented in C

• How are colors represented in the videoBuffer?

• Understand how to index the videoBuffer
  • Write a line of code that sets the pixel in row 15 and column 12 (indexed from 0) to yellow
  • videoBuffer[15 * 240 + 12] = #
