Combinational Logic

• A combination of AND, OR, NOT (plus NAND & NOR)

• The same inputs always produce same output

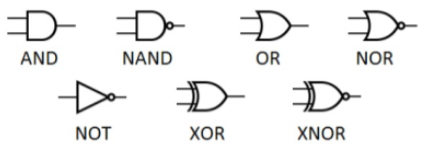

• Logic Gates



Boolean Logic

• Master Table:

  A	B	A'	B'	A'B'	(A'B')'	A'+B'	(A'+B')'	A+B	AB
  0	0	1	1	1	0	1	0	0	0
  0	1	1	0	0	1	1	0	1	0
  1	0	0	1	0	1	1	0	1	0
  1	1	0	0	0	1	0	1	1	1

Formulas

AND

x & y = y & x
x & (y & z) = (x & y) & z
x & OxFFFF = x
x & 0 = 0
x & x = x

OR

x & y = y & x
x & (y & z) = (x & y) & z
x & OxFFFF = x
x & 0 = 0
x & x = x

NOT

~(~x) = x

XOR

x ^ y = y ^ x
x ^ (y ^ z) = (x ^ y) ^ z
x ^ 0 = x
x ^ y ^ y = x
x ^ x = 0
x ^ 0xFFFF = ~x
// Additionally, XOR can be composed using the 3 basic operations (AND, OR, NOT)
a ^ b = (a | b) & (~a | ~b)
a ^ b = (a & ~b) | (~a & b)

Others

x | (x & y) = x
x & (x | y) = x
~(x | y) = ~x & ~y
~(x & y) = ~x | ~y
x | (y & z) = (x | y) & (x | z)
x & (y | z) = (x & y) | (x & z)
x & (y ^ z) = (x & y) ^ (x & z)
x + y = (x ^ y) + ((x & y) << 1)
x - y = ~(~x + y)

Boolean Algebra

• Boolean Summary

  • Algebraic Properties



  • Algebraic Identities



  • Useful Simplification Rules

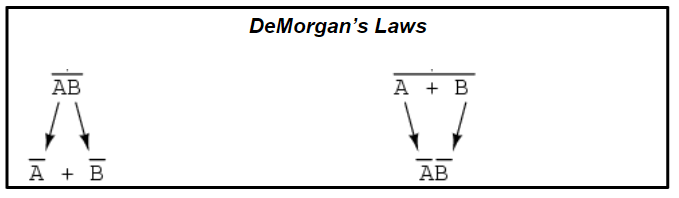

  • DeMorgan's Laws



    ---



• Simplification Example:
  1. F = A'B'C' + A'B'C + AB'C' + AB' C
  2. F = A'B'(C'+C) + AB'(C'+C)
  3. F = A'B' + AB'
  4. F = B'(A'+A)
  5. F = B

Questions & Answers

Convert the following boolean expressions to truth tables:

• A | ~B

• A & (B ^ C), where (^) denotes XOR

• ~(~A & B)

Using De Morgan’s law, which of the following expressions is equivalent to the expression A & ~B & C?

• A | ~B | C

• ~(A | ~B | C)

• ~A | B | ~C

• ~(~A | B | ~C)

Use De Morgan's law to rewrite the expression ~(~A | (B & C)) to use only AND (&) and NOT (~) operations

Simplify the following Boolean expression: E = ABCD + BC + A’BC or (E = A&B&C&D | B&C | ~A&B&C)

E = ABCD + BC + A’BC

[use identity: a + ab = a]

ABCD + BC = BC

BC + A’BC = BC

E = BC
